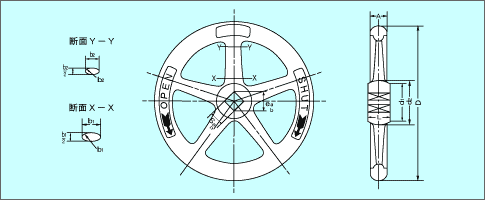

| 品番 |
外径 |
角 穴 |
ボ ス |
スポーク |
リム |
備 考 |
| D |
Sa |
ea |
Sb |
eb |
L |
d1 |
d2 |
数 |
b1 |
b2 |
A |
| FGL- 63 |
63 |
7 |
9.2 |
|
|
13 |
20 |
24 |
3 |
12 |
10 |
13 |
| マークは |
 |
 |
OS |
|
| FGL- 80 |
80 |
8 |
10.8 |
|
|
14 |
22 |
26 |
3 |
14 |
12 |
14 |
| マークは |
|
|
OS |
|
| FGL-100 |
100 |
10 |
13.6 |
|
|
15 |
24 |
28 |
3 |
17 |
15 |
15 |
| マークは |
|
|
OS |
|
| FGL-125 |
125 |
10 |
13.6 |
|
|
17 |
28 |
32 |
3 |
19 |
17 |
16 |
|
| FGL-140 |
140 |
12 |
16.5 |
|
|
18 |
30 |
35 |
3 |
21 |
18 |
17 |
|
| FGL-160 |
160 |
14 |
19.2 |
|
|
22 |
32 |
38 |
3 |
23 |
20 |
18 |
|
| FGL-180 |
180 |
14 |
19.2 |
|
|
22 |
32 |
38 |
3 |
24 |
20 |
20 |
|
| FGL-200 |
200 |
17 |
23 |
14 |
19.2 |
26 |
38 |
45 |
3 |
26 |
22 |
22 |
|
| FGL-224 |
224 |
19 |
26 |
17 |
23 |
27 |
42 |
50 |
5 |
24 |
20 |
24 |
|
| FGL-250 |
250 |
22 |
29.5 |
19 |
26 |
30 |
45 |
55 |
5 |
26 |
22 |
26 |
|
| FGL-280 |
280 |
22 |
29.5 |
|
|
32 |
50 |
60 |
5 |
28 |
24 |
26 |
|
| FGL-315 |
315 |
27 |
36.5 |
22 |
29.5 |
35 |
55 |
65 |
5 |
30 |
26 |
28 |
|
| FGL-355 |
355 |
30 |
40 |
27 |
36.5 |
38 |
60 |
72 |
5 |
32 |
28 |
30 |
|
| FGL-400 |
400 |
32 |
43 |
30 |
40 |
42 |
65 |
78 |
5 |
34 |
30 |
32 |
|
| FGL-450 |
450 |
36 |
48 |
30 |
40 |
46 |
70 |
85 |
5 |
36 |
30 |
34 |
|
| FGL-500 |
500 |
36 |
48 |
32 |
43 |
51 |
78 |
95 |
5 |
38 |
32 |
34 |
|
| FGL-560 |
560 |
41 |
55 |
36 |
48 |
55 |
94 |
115 |
6 |
40 |
34 |
36 |
|
| FGL-630 |
630 |
46 |
61 |
41 |
55 |
65 |
102 |
125 |
6 |
42 |
36 |
38 |
|
| FGL-710 |
710 |
50 |
66 |
46 |
61 |
70 |
110 |
135 |
6 |
46 |
40 |
42 |
|
| FGL-800 |
800 |
55 |
72 |
|
|
72 |
120 |
145 |
6 |
50 |
44 |
46 |
|
| FGL-900 |
900 |
|
|
|
|
80 |
135 |
160 |
6 |
56 |
50 |
50 |
単位：mm |
|
